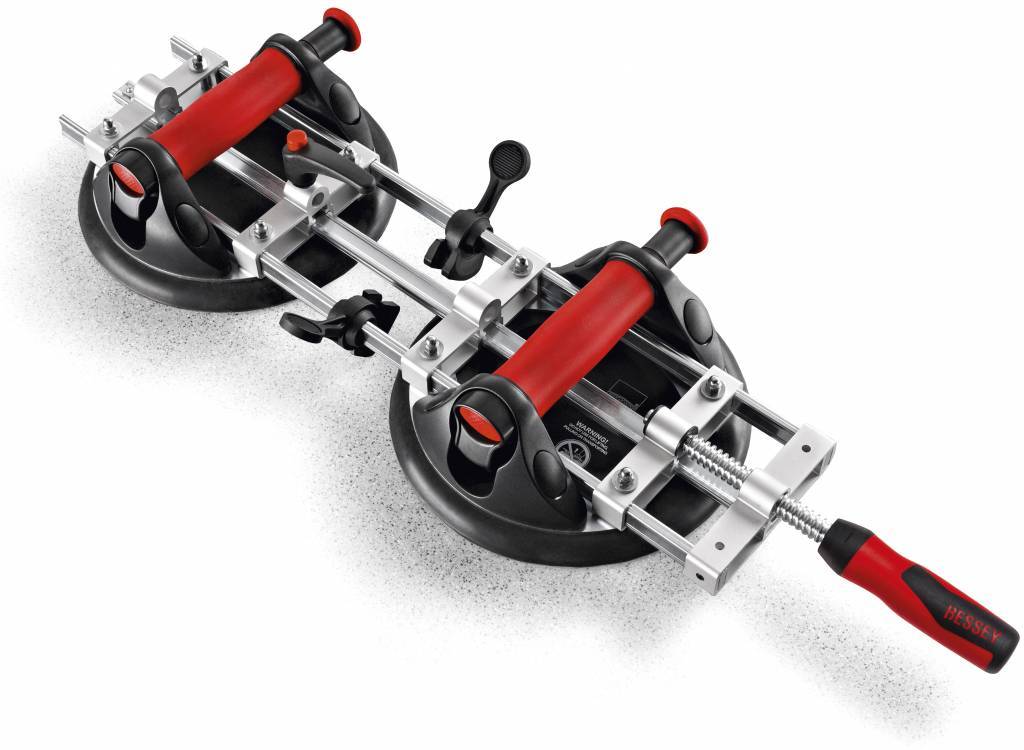

PS130 plate clamp, clamping range 5–130 mm
For clamping and positioning large and heavy components with smooth surfaces, such as artificial stone, ceramics, granite, Corian®, plastic, metal and glass. Vacuum pumps with a control function. The required negative pressure is generated with just a few pump strokes – for maximum vacuum and the greatest possible suction force of up to 1,200 N. An indicator on the pump handle allows the vacuum to be checked at any time and increased to the maximum level by pumping further. Release buttons. Simply pressing the release buttons releases the vacuum, allowing the plate clamp to be removed quickly. Distance-adjustment screw. To adjust the distance quickly, simply loosen the screw and slide the vacuum suction cup along the guide rails to the desired position. Stable construction. The guide rails, which run within anodised aluminium profiles, are made from BESSEY quality steel. They keep the suction cups aligned even under high clamping forces. This ensures precise working.

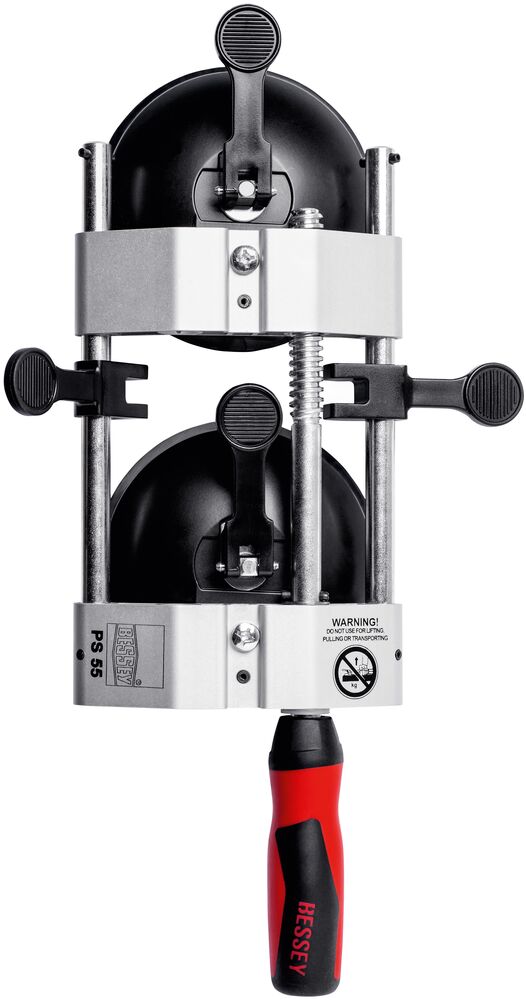

PS55 plate clamp, clamping range 10–55 mm
Flat vacuum lifter. An easy-to-operate vacuum lifter; tilting the clamping lever on the vacuum lifter creates a vacuum, automatically securing the plate clamp to the plate. Practical eccentric lever. Using the two levers on the guide rods, any differences in height that may occur when clamping sheets can be easily compensated for. Stable construction. Cold-drawn, hot-dip galvanised guide rods in sturdy aluminium profiles prevent deflection during clamping and keep the plate clamp in the same plane. This guarantees precise working. Ergonomically designed plastic handle, With the perfect grip, it delivers a clamping force of up to 260 N in the horizontal direction. This is ensured by the ergonomic plastic handle and the flexible trapezoidal threaded rod. Veribor® spare set of rubber discs BO 614.032, ø 120 mm

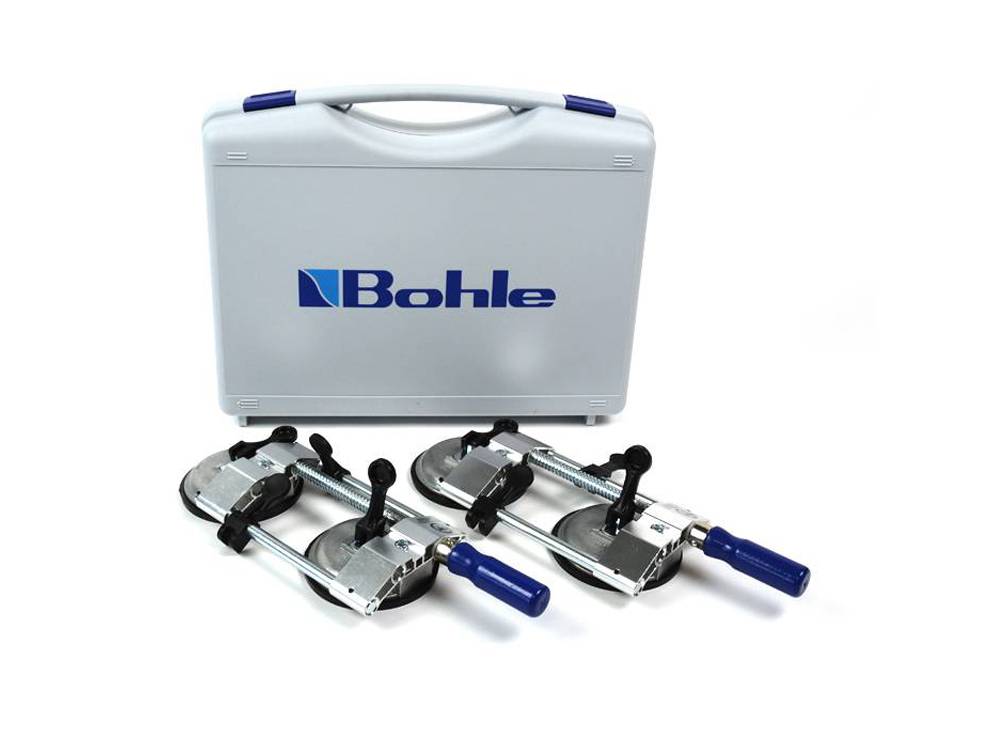

Veribor® clamping plate set, 10–55 mm.
The ideal tool for accurately clamping, opening and closing large, flat sheets of material. Particularly suitable for bonding worktops. Suitable for all materials with flat, airtight surfaces such as glass, plastic, metal, coated wood, marble, etc. The vacuum is generated by activating the lever on the suction cup. When not in use, the rubber seals must be pressed firmly against the work surface. When you engage the lever, you should feel a noticeable resistance produced by the vacuum. By turning the threaded handle, the material can be pulled together or spread apart. If necessary, any differences in height between the plates can be adjusted using the lever on the guide. This set comprises 2 plate clamps and is supplied in a premium case. (Also available as a single item: BO 650.33) Veribor® spare set of rubber discs BO 614.032, ø 120 mm Veribor® is a quality brand of the Bohle Group. The products are developed and manufactured exclusively in Germany – with particular attention to high safety standards and ergonomics. They are free from carcinogenic hydrocarbon compounds (PAHs).

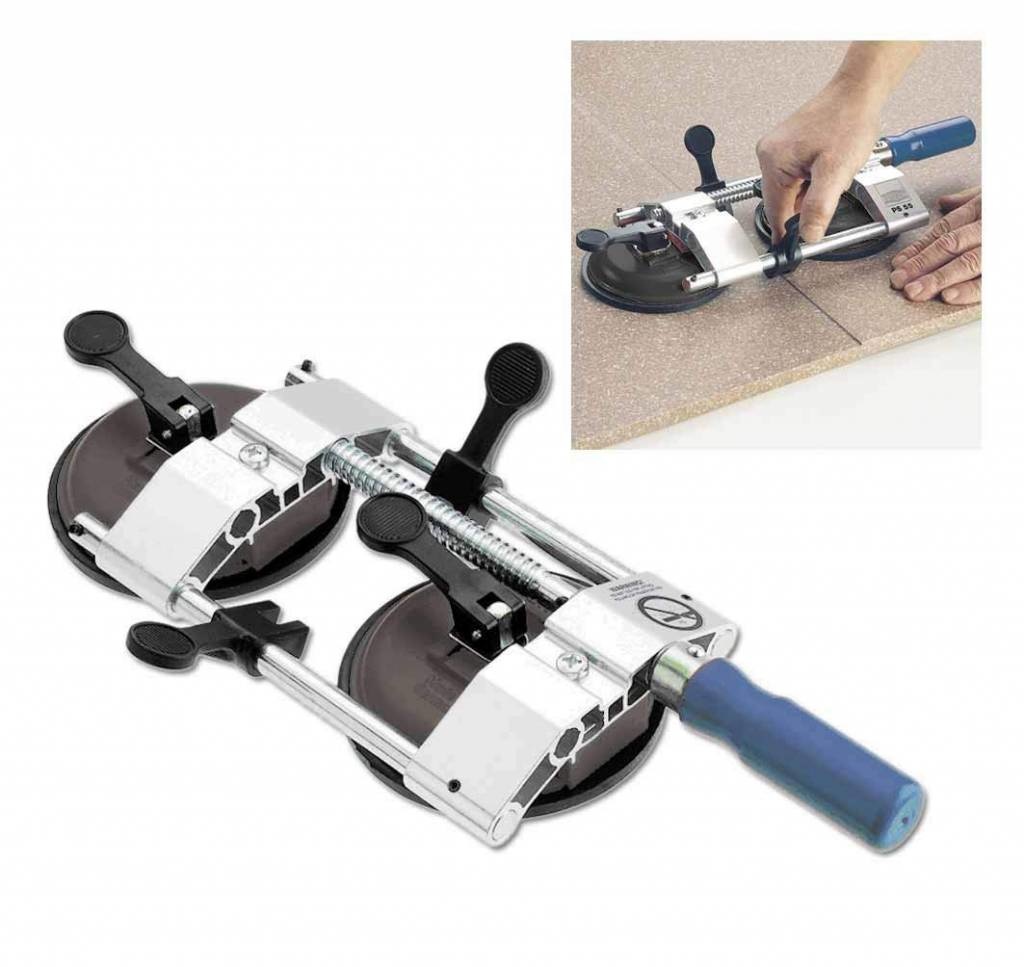

Veribor® plate clamp.
The ideal tool for the precise clamping, opening and closing of large, flat sheet materials. Particularly suitable for edge-to-edge bonding of worktops or counters. Suitable for all materials with flat and airtight surfaces such as glass, plastic, metal, painted glass, marble, etc. The spindle can be used to pull the material together or push it apart. If necessary, the height between the different materials can be adjusted using the eccentric lever. Single product (Also available as a set of 2 in a case: BO 650.35) Veribor® spare set of rubber discs BO 614.032, ø 120 mm
