25 kg counterweight for the Liftmaster B1 control unit.
The telescopic counterweight ensures the Liftmaster B1 operating aid remains stable.
Arm with tilt and swivel function for the Liftmaster vacuum suction cup.
Additional arm for the Liftmaster vacuum lifter. This tilt-and-swivel arm allows the vacuum lifter to be adapted for independent use on, for example, a crane rail or hydraulic crane. B18DM4GS The handy MANUAL vacuum lifter (BO B18DM4GS), with 360° rotation and 90° tilt capability, has no electric pump and can therefore be used anytime, anywhere, and operated with one hand. Thanks to its dual circuit, reserve tanks, vacuum gauge and visual vacuum loss indicator, it also offers a high level of safety. This vacuum lifter is characterised by its compact design and low weight of 20 kg. It can be used in various positions by mounting it on the lashing eyes. PLEASE NOTE: The product is shown in the photo with the additional crane arm. This is not included as standard but can be ordered as an optional extra if required
Double straps for the Liftmaster B1 control unit

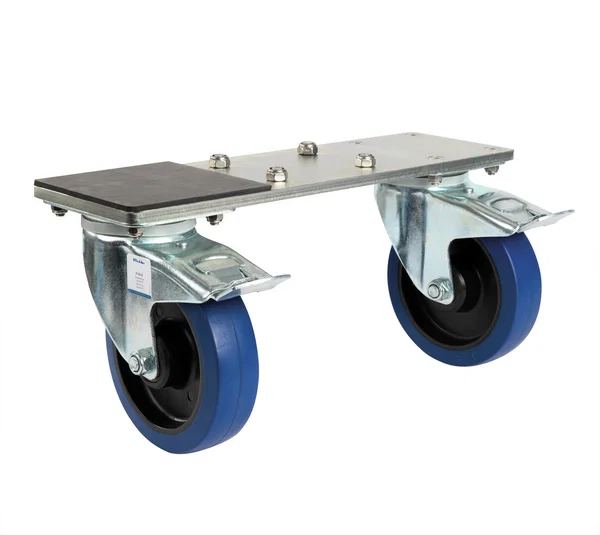

The optional twin tyres for the Liftmaster B1 transfer aid (BO 88.01), designed for self-assembly, improve stability.For the Liftmaster B1 operating aid (BO 88.01)Greater stability

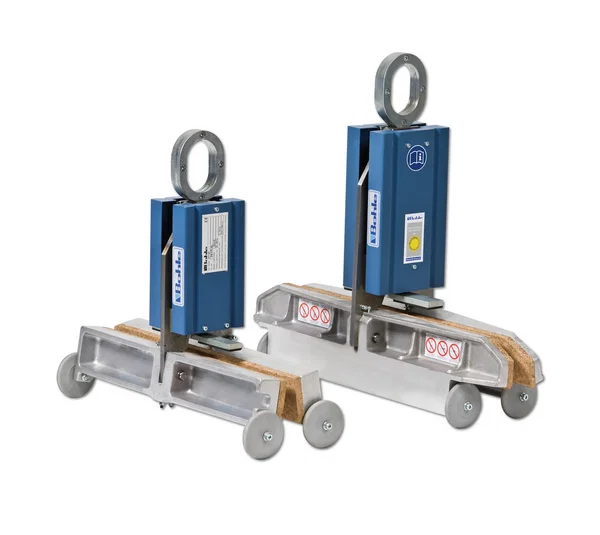

Glass-handling tongs, 1000 kg.
The GTP1030 is a robust transport clamp for handling various sheet materials. This lifting device is characterised by its particularly simple and safe operation.The glass transport clamp is simply guided over the load using a crane. Placing it on the sheet activates a mechanism that ensures a secure grip through the upward movement of the transport clamp. When the clamp is set down after transport, the mechanism automatically releases it from the goods being transported. The glass handling clamp is used exclusively for the transport of single, flat, dry, clean, non-slippery sheet materials, primarily glass, whilst observing the maximum load capacity of 1,000 kg.Application note:The glass transport clamp is not suitable for lifting textured (e.g. wired glass) or coated or soiled (e.g. Lucite powder) surfaces.

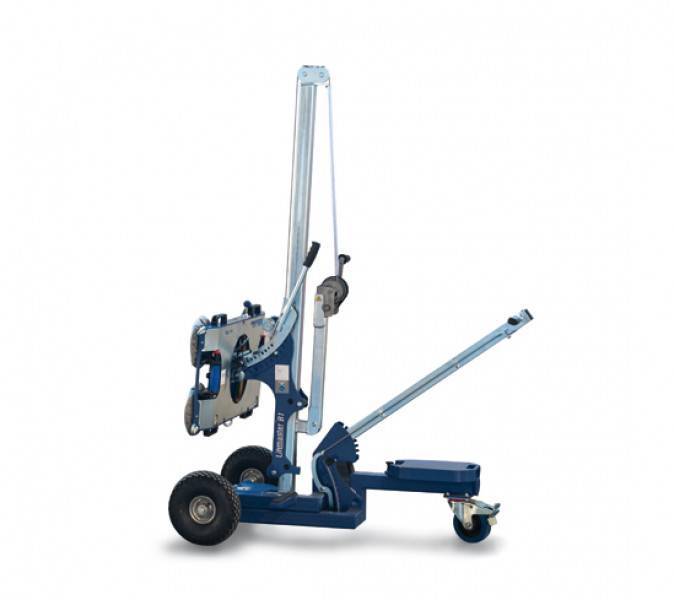

Liftmaster hoist with manual lifting system.
Available on request. Call us for a bespoke quote!With the Liftmaster, Bohle offers an innovative, reliable tool for handling and installation, enabling elements weighing up to 180 kilograms – such as glass panes, window units or metal or stone slabs – can be moved easily and safely by just one person.Larger glass sizes, increasing weights and limited space present processors and fitters with new challenges every day. The new Liftmaster is the well-thought-out solution to this: a tried-and-tested lifting device that combines maximum safety, optimum flexibility and uncompromising independence – entirely without electricity or a battery. At the heart of the system is the manual, 360° rotatable, 2-circuit vacuum lifting system BO B18DM4GS. It is the only one of its kind in the world: energy-independent, certified to DIN EN 13155 and awarded the GS mark by TÜV Nord. As a result, the Liftmaster may not only be used for internal transport, but is also officially approved for use on construction sites – a decisive advantage in day-to-day work. The compact lifting system weighs just approx. 20 kg, can be removed without tools and, if necessary, used separately, for example in combination with an optional rotating and swivelling crane arm. The vacuum is reliably generated by a hand pump and continuously monitored by a pressure gauge. The dual-circuit system with four suction cups ensures maximum safety.The Liftmaster also impresses when it comes to handling: it fits through doors with a clear opening of 800 × 2000 mm, can be rotated ‘on the spot’ and allows for manoeuvring with millimetre precision, even in the smallest of spaces. The unit can be assembled or dismantled in just two minutes and can be transported effortlessly in almost any estate car or van. In short: the Liftmaster is a truly professional tool for anyone who wants to move heavy glass and sheet elements safely, accurately and independently.Application note:The world’s only power- and energy-independent dual-circuit vacuum lifting system for maximum safety and flexibility.Your benefits:The world’s only power- and energy-independent vacuum lifting system with 2 circuitsDIN EN 13155, certified by TÜV Nord with the GS markSuitable for internal transport and also for official use on construction sitesFits through doors with a clear opening of 800 x 2000 mmEnables manoeuvring with millimetre precision – turning "on the spot"Can be assembled and dismantled in two minutes and fits in almost any estate carCan also be used separately, with an optional rotating and swivelling crane armScope of delivery:1 item: Liftmaster lifting device1 item: Manual 2-circuit vacuum lifting system3 items: Counterweights1 item: Single tyres

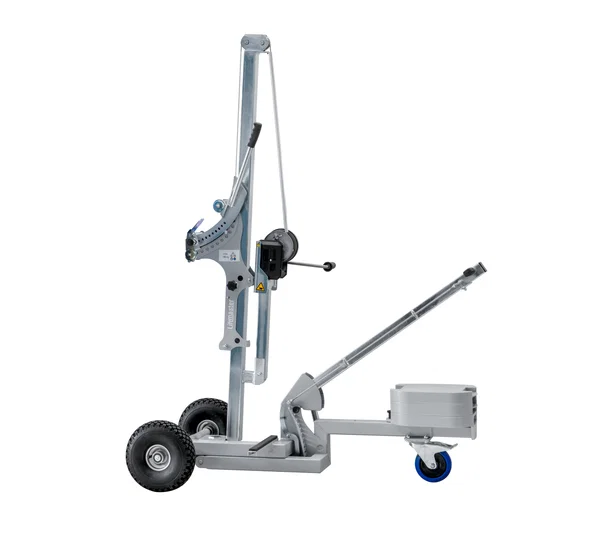

Liftmaster hoist without lifting mechanism.
Available on request. Call us for a bespoke quote!With the Liftmaster B1, Bohle has developed an innovative handling and installation aid that allows elements weighing up to 180 kilograms – such as glass panes, window units or metal or stone slabs – to be moved easily and safely by just one person.The trend towards ever-larger glazing units in architecture and the growing proportion of triple-glazed thermal insulation glass present new challenges for manufacturers and installers: Elements that used to be carried by two people are now so heavy that they can hardly be transported by hand through the factory or across the building site.Scope of supply:1 item: Liftmaster lifting device3 items: Counterweights1 item: Single straps
SP88.028 spacer for B18DM4(GS) suction cup lifting device.
Product information "Spacer SP88.028 for suction cup lifting device B18DM4(GS)"The spacers for the B18DM4(GS) suction plate lifting device enable the vacuum lifting device to lift window sashes with sash rods or sash elements. The distance between the suction surface and the frame is increased by approx. 50 mm.As a result of the changed lever ratios, the maximum lifting capacity of the lifting system is reduced to 150 kg. If you use this lifting system in combination with a Liftmaster B1 (BO 88.01), the maximum lifting capacity of the entire system is reduced to 150 kg. 4 spacers are supplied. For the manual lifting mechanism of the finishing bar BO B18DM4(GS). Application note:The spacer must be fitted by Bohle! If fitted by the user, the UVV test is no longer valid!

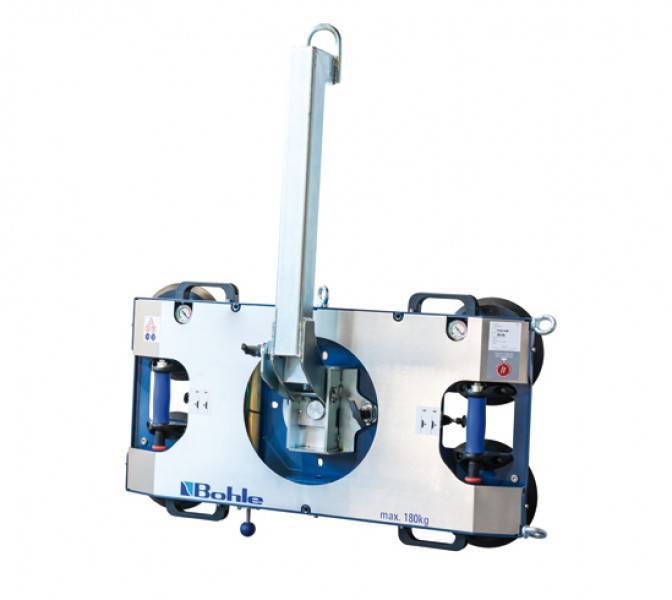

Vacuum lifting system, manual pumping, load capacity up to 180 kg
The Bohle manual lifting device is characterised by its extremely compact design and low weight. It has a load capacity of 180 kg.The lifting device does not require an electric pump and can therefore be used anywhere and at any time. It offers maximum safety thanks to a dual-circuit system, reserve tanks, a vacuum gauge and an additional visual vacuum loss indicator.Your benefits:Vacuum generated by a hand pump, so always ready for usePower-independent, no batteries required2-circuit system with 4 suction cupsSuitable for use on building sites and in the workshopVery flat and compactPressure gauge for vacuum monitoringRotates 360° / 90° swivellingVacuum display via 2 vacuum gaugesMaximum operating altitude 1,680 m above sea levelWeighs just 31 kg
XtraColl® Applicator for glass thicknesses: 12 mm toughened glass, 10.76–12.76 mm laminated glass.
Use the accompanying XtraColl® applicator for easy and precise application to the edge of the glass.Use our applicator to apply XtraColl® double-sided adhesive tape to the edge of the glass easily and accurately. By changing the insert, you can use the applicator for different glass thicknesses.Application note:Matching extension inlay BO 5207947 for glass thicknesses ESG 8–10 mm; VSG 8.76 mm. Matching extension inlay BO 5207949 for glass thickness VSG 17.52 mm. Inlay BO 5207948, suitable for glass thicknesses of 10 and 12 mm, in combination with applicator BO 5207939N Inlay BO 5207947, suitable for glass thicknesses of 8, 8.76 and 10 mm, in combination with applicator BO 5207946N. Insert BO 5207949, suitable for glass thickness 17.52 mm, in combination with applicator BO 5207946N
XtraColl® Applicator for toughened glass with a thickness of 10–12 mm.
Use the accompanying XtraColl® applicator for easy and precise application to the edge of the glass.Use our applicator for the easy and precise application of double-sided XtraColl® tape to the edge of the glass. By changing the insert, you can use the applicator for different glass thicknesses.Application note:Matching extension piece BO 5207948 for ESG glass thicknesses of 10 and 12 mm. Insert BO 5207948, suitable for glass thicknesses of 10 and 12 mm, in combination with applicator BO 5207939N Insert BO 5207947, suitable for glass thicknesses of 8, 8.76 and 10 mm, in combination with applicator BO 5207946N. Insert BO 5207949, suitable for a glass thickness of 17.52 mm, in combination with applicator BO 5207946N
XtraColl® applicator, extension insert.
Use our applicator to apply XtraColl® double-sided adhesive tape to the edge of the glass easily and accurately. By simply changing the insert, you can use the applicator for different glass thicknesses.Application note:Matching applicator BO 5207939N.Bohle Duplocoll® Adapter for Applicator – Accessories for BO 5207939N · Glass thickness: toughened glass 10–12 mm (BO 5207948) Accessories for BO 5207946N · Glass thickness: toughened glass 8–10 mm · laminated glass 8.76 mm (BO 5207947) Accessories for BO 5207946N · Glass thickness: laminated glass 17.52 mm (BO 5207949)
XtraColl® applicator, extension insert.
Use our applicator to apply XtraColl® double-sided adhesive tape to the edge of the glass easily and accurately. By simply changing the insert, you can use the applicator for different glass thicknesses.Application note:Matching applicator BO 5207946N.Bohle Duplocoll® Adapter for Applicator Accessories for BO 5207939N · Tempered glass thickness 10–12 mm (BO 5207948) Accessories for BO 5207946N · Glass thickness: toughened glass 8–10 mm · laminated glass 8.76 mm (BO 5207947) Accessories for BO 5207946N · Glass thickness: laminated glass 17.52 mm (BO 5207949)
XtraColl® applicator, extension insert.
Use our applicator to apply XtraColl® double-sided adhesive tape to the edge of the glass easily and accurately. By simply changing the insert, you can use the applicator for different glass thicknesses.Application note:Matching applicator BO 5207946NBohle Duplocoll® Adapter for Applicator Accessories for BO 5207939N · Glass thickness: toughened glass 10–12 mm (BO 5207948) Accessories for BO 5207946N · Glass thickness: toughened glass 8–10 mm · laminated glass 8.76 mm (BO 5207947) Accessories for BO 5207946N · Glass thickness: laminated glass 17.52 mm (BO 5207949)
XtraColl® double-sided adhesive tape, passivated edges, glass thickness from 10 mm to 10.76 mm, -7 mm.
XtraColl® is the ideal adhesive tape for sealing glass joints where transparency is important, for example in all-glass systems, glass partition walls, furniture construction or shower enclosures. Compared to silicone, you save a considerable amount of time and money during installation. The adhesive joints are barely visible because the tape’s refractive index is almost identical to that of glass. The adhesive-free dry edge makes XtraColl® resistant to external influences. It offers excellent initial adhesion and consistently high final strength. The adhesive tape is resistant to ageing and UV radiation; it is economical, high-quality and design-friendly. The adhesive tape can also be used on various materials such as glass, wood, aluminium, plastic or ceramics. Glass thickness: 8 – 8.76 mm – Width: 5 mm – Material thickness: 3 mm Glass thickness: 10 – 10.76 mm – Width: 7 mm – Material thickness: 3 mm Glass thickness: 12 – 12.76 mm – Width: 9 mm – Material thickness: 3 mm Glass thickness: 17.52 mm - Width: 14 mm - Material thickness: 3 mm Significant time and cost savings compared to sealing with silicone Ageing- and UV-resistant, economical, high-quality and design-friendly Clean and simple application process, particularly with the optional applicator Suitable for all kinds of materials such as wood, aluminium, plastic, ceramics or glass Temperature resistance: -40°C to +150°C When using XtraColl® on laminated safety glass with acoustic PVB film, suitability must be checked in advance. Use the accompanying applicator for easy and precise application to the edge of the glass. For glass thicknesses of 10 and 12 mm, use insert BO 5207948 in combination with applicator BO 5207939N. For glass thicknesses of 8, 8.76 and 10 mm, use insert BO 5207947 in combination with applicator BO 5207946N. Insert BO 5207949, suitable for a glass thickness of 17.52 mm, in combination with applicator BO 5207946N. To assist with sliding glass panes together, we recommend the BO 650.35 or BO 650.33 pane clamp. Click here for the brochure in PDF format:
XtraColl® double-sided adhesive tape, passivated edges, glass thickness from 12 mm to 12.76 mm–9 mm.
XtraColl® is the ideal adhesive tape for sealing glass joints where transparency is important, for example in all-glass systems, glass partition walls, furniture construction or shower enclosures. Compared to silicone, you save a considerable amount of time and money during installation. The adhesive joints are barely visible because the tape’s refractive index is almost identical to that of glass. The adhesive-free dry edge makes XtraColl® resistant to external influences. It offers excellent initial adhesion and consistently high final strength. The adhesive tape is resistant to ageing and UV radiation; it is economical, high-quality and design-friendly. The adhesive tape can also be used on various materials such as glass, wood, aluminium, plastic or ceramics. Glass thickness: 8 – 8.76 mm – Width: 5 mm – Material thickness: 3 mm Glass thickness: 10 – 10.76 mm – Width: 7 mm – Material thickness: 3 mm Glass thickness: 12 – 12.76 mm – Width: 9 mm – Material thickness: 3 mm Glass thickness: 17.52 mm - Width: 14 mm - Material thickness: 3 mm Significant time and cost savings compared to sealing with silicone Ageing- and UV-resistant, economical, high-quality and design-friendly Clean and simple application process, particularly with the optional applicator Suitable for all kinds of materials such as wood, aluminium, plastic, ceramics or glass Temperature resistance: -40°C to +150°C When using XtraColl® on laminated safety glass with acoustic PVB film, suitability must be checked in advance. Use the accompanying applicator for easy and precise application to the edge of the glass. For glass thicknesses of 10 and 12 mm, use insert BO 5207948 in combination with applicator BO 5207939N. For glass thicknesses of 8, 8.76 and 10 mm, use insert BO 5207947 in combination with applicator BO 5207946N. Insert BO 5207949, suitable for a glass thickness of 17.52 mm, in combination with applicator BO 5207946N. To assist with sliding glass panes together, we recommend the BO 650.35 or BO 650.33 pane clamp. Click here for the brochure in PDF format:
XtraColl® double-sided adhesive tape, passivated edges, glass thickness from 8 mm to 17.52 mm–5 mm.
XtraColl® is the ideal adhesive tape for sealing glass joints where transparency is important, for example in all-glass systems, glass partition walls, furniture construction or shower enclosures. Compared to silicone, you save a considerable amount of time and money during installation. The adhesive joints are barely visible because the tape’s refractive index is almost identical to that of glass. The adhesive-free dry edge makes XtraColl® resistant to external influences. It offers excellent initial adhesion and consistently high final strength. The adhesive tape is resistant to ageing and UV radiation; it is economical, high-quality and design-friendly. The adhesive tape can also be used on various materials such as glass, wood, aluminium, plastic or ceramics. Glass thickness: 8 – 8.76 mm – Width: 5 mm – Material thickness: 3 mm Glass thickness: 10 – 10.76 mm – Width: 7 mm – Material thickness: 3 mm Glass thickness: 12 – 12.76 mm – Width: 9 mm – Material thickness: 3 mm Glass thickness: 17.52 mm - Width: 14 mm - Material thickness: 3 mm Significant time and cost savings compared to sealing with silicone Ageing- and UV-resistant, economical, high-quality and design-friendly Clean and simple application process, particularly with the optional applicator Suitable for all kinds of materials such as wood, aluminium, plastic, ceramics or glass Temperature resistance: -40°C to +150°C When using XtraColl® on laminated safety glass with acoustic PVB film, suitability must be checked in advance. Use the accompanying applicator for easy and precise application to the edge of the glass. For glass thicknesses of 10 and 12 mm, use insert BO 5207948 in combination with applicator BO 5207939N. For glass thicknesses of 8, 8.76 and 10 mm, use insert BO 5207947 in combination with applicator BO 5207946N. Insert BO 5207949, suitable for a glass thickness of 17.52 mm, in combination with applicator BO 5207946N. To assist with sliding glass panes together, we recommend the BO 650.35 or BO 650.33 pane clamp. Click here for the brochure in PDF format:
XtraColl® double-sided adhesive tape, passivated edges, glass thickness from 8 mm to 17.52 mm, 12 metres – 14 mm.
XtraColl® is the ideal adhesive tape for sealing glass joints where transparency is important, for example in all-glass systems, glass partition walls, furniture construction or shower enclosures. Compared to silicone, you save a considerable amount of time and money during installation. The adhesive joints are barely visible because the tape’s refractive index is almost identical to that of glass. The adhesive-free dry edge makes XtraColl® resistant to external influences. It offers excellent initial adhesion and consistently high final strength. The adhesive tape is resistant to ageing and UV radiation; it is economical, high-quality and design-friendly. The adhesive tape can also be used on various materials such as glass, wood, aluminium, plastic or ceramics. Glass thickness: 8 – 8.76 mm – Width: 5 mm – Material thickness: 3 mm Glass thickness: 10 – 10.76 mm – Width: 7 mm – Material thickness: 3 mm Glass thickness: 12 – 12.76 mm – Width: 9 mm – Material thickness: 3 mm Glass thickness: 17.52 mm - Width: 14 mm - Material thickness: 3 mm Significant time and cost savings compared to sealing with silicone Ageing- and UV-resistant, economical, high-quality and design-friendly Clean and simple application process, particularly with the optional applicator Suitable for all kinds of materials such as wood, aluminium, plastic, ceramics or glass Temperature resistance: -40°C to +150°C When using XtraColl® on laminated safety glass with acoustic PVB film, suitability must be checked in advance. Use the accompanying applicator for easy and precise application to the edge of the glass. For glass thicknesses of 10 and 12 mm, use insert BO 5207948 in combination with applicator BO 5207939N. For glass thicknesses of 8, 8.76 and 10 mm, use insert BO 5207947 in combination with applicator BO 5207946N. Insert BO 5207949, suitable for a glass thickness of 17.52 mm, in combination with applicator BO 5207946N. To assist with sliding glass panes together, we recommend the BO 650.35 or BO 650.33 pane clamp. Click here for the brochure in PDF format:
