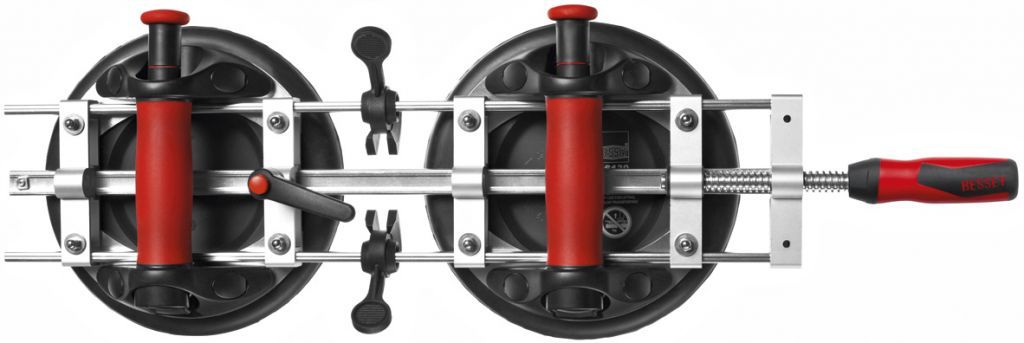

PS130 plate clamp, clamping range 5–130 mm
€542.00
Product information "PS130 plate clamp, clamping range 5–130 mm"

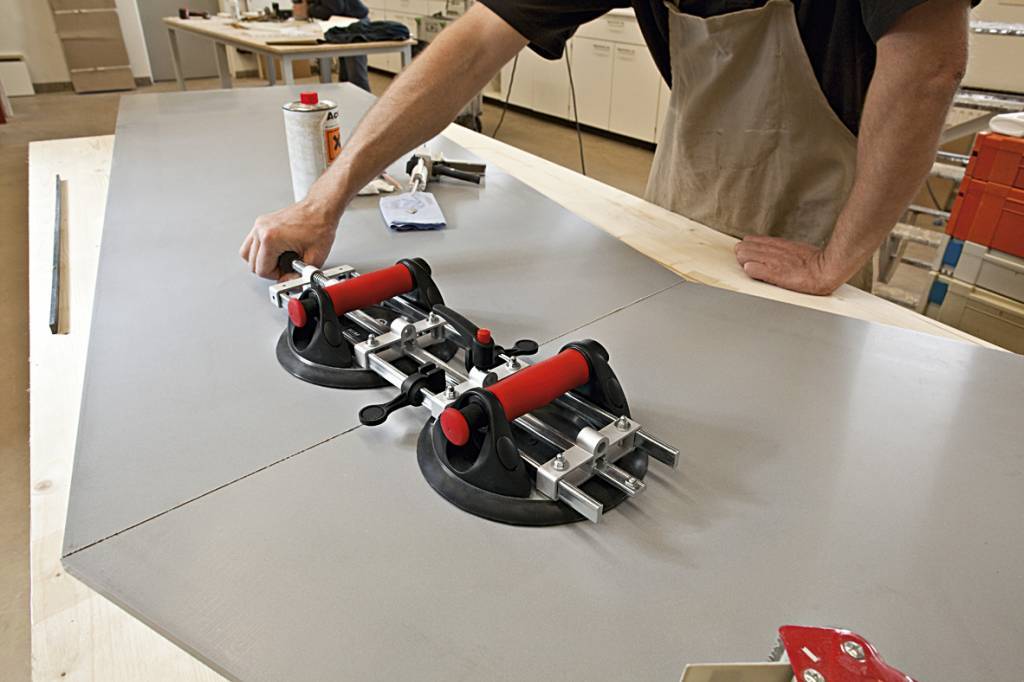

For clamping and positioning large and heavy components with smooth surfaces, such as artificial stone, ceramics, granite, Corian®, plastic, metal and glass.
Manually operated vacuum pumps with maximum suction power and the greatest possible horizontal clamping force (up to 1,200 N).
Indicator on the pump lever for continuous monitoring of the vacuum.
Practical quick-adjustment function for rapid adjustment of the distance between the two vacuum cups.

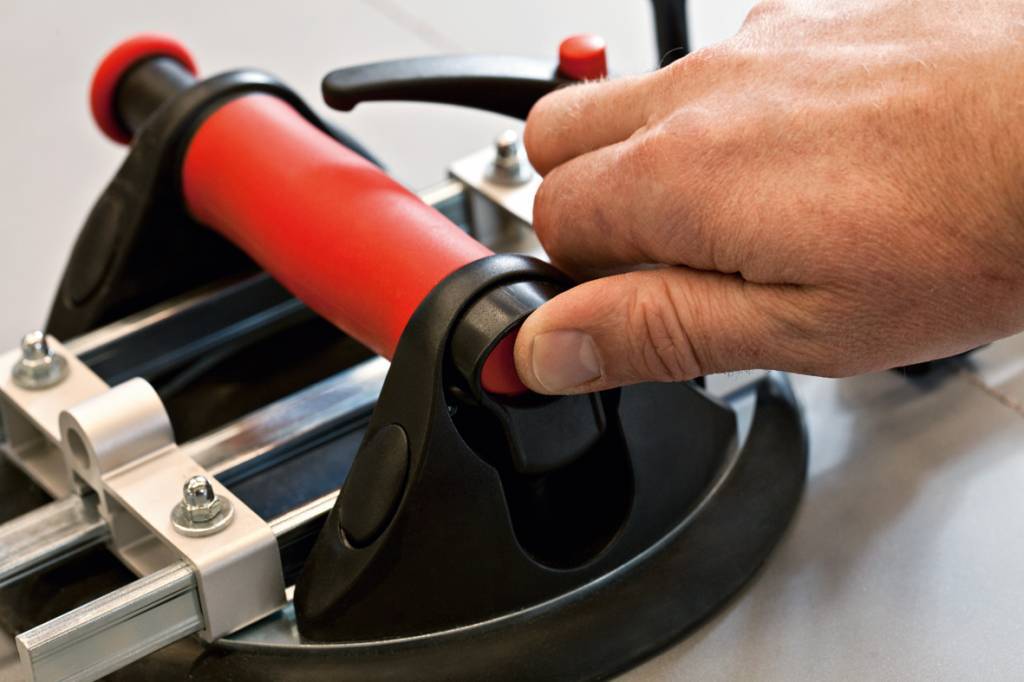

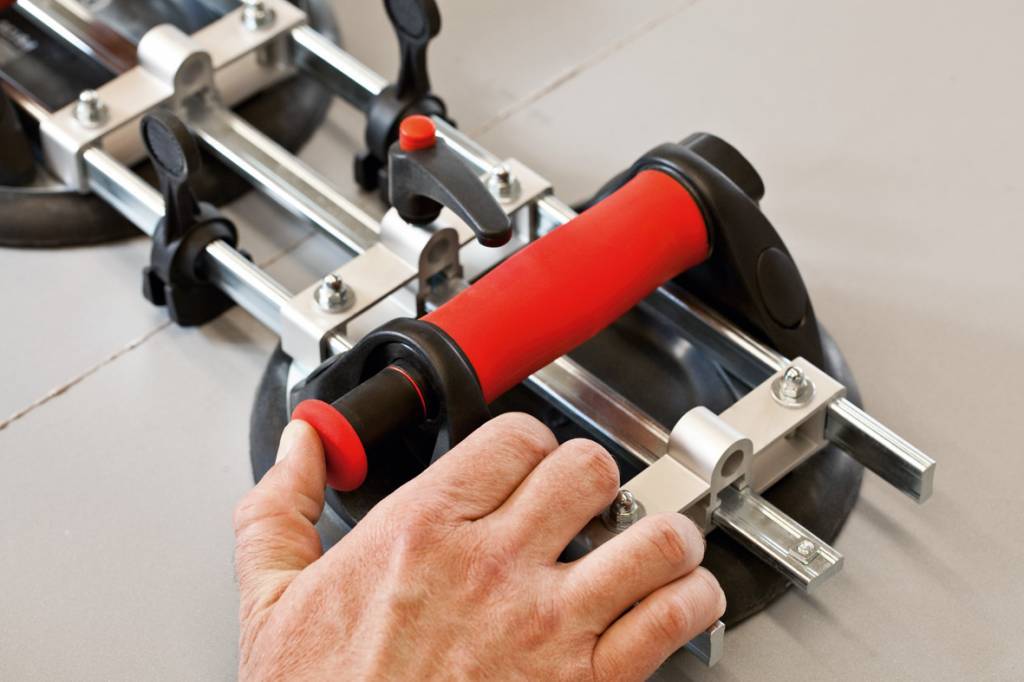

- Vacuum pumps with a control function. The required negative pressure is generated with just a few pump strokes – for maximum vacuum and the greatest possible suction force of up to 1,200 N. A indicator on the pump handle allows the vacuum to be checked at any time and increased to the maximum level by pumping further.

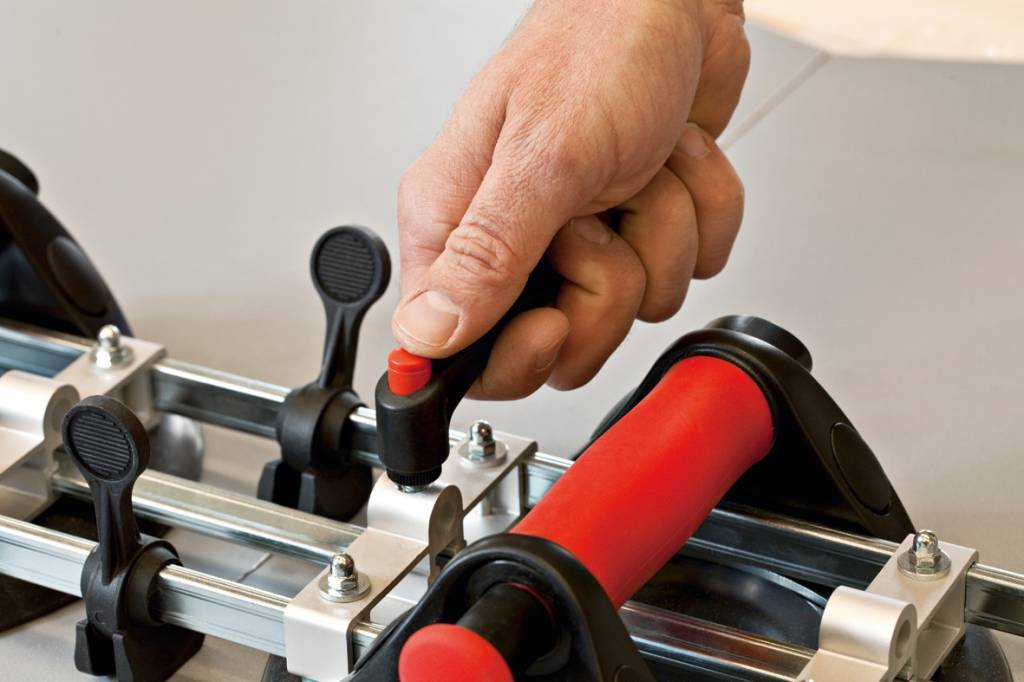

- Release buttons. Simply pressing the release buttons releases the vacuum, allowing the clamping device to be removed quickly.

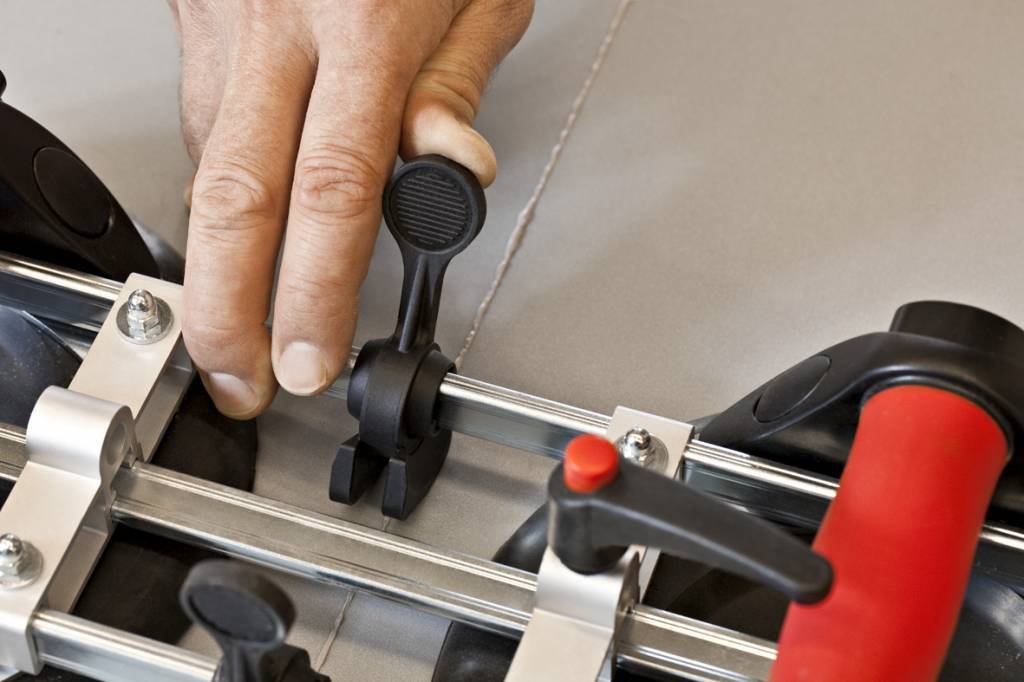

- Distance-adjustment screw. To adjust the distance quickly, simply loosen the screw and slide the vacuum suction cup along the guide rails to the desired position.
- Stable construction. The guide rails, which move within anodised aluminium profiles, are made from BESSEY quality steel. They keep the suction cups aligned even under high clamping forces. This ensures precise working.
