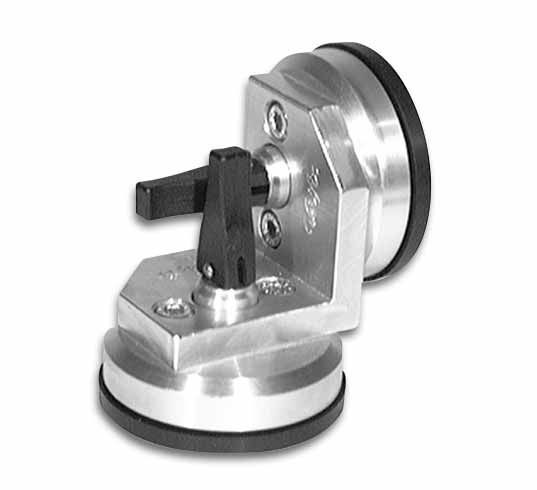

Veribor® suction unit made of aluminium.
€28.00
Product information "Veribor® suction unit made of aluminium."
Universal suction cup for the quick attachment of various end products such as measuring instruments, displays, etc. Suitable for all materials with flat, airtight surfaces such as glass, plastic, metal, coated wood, marble, etc. The vacuum is created by turning the lever.
The suction cup must be pressed firmly against the surface to be attached, with the rubber disc relaxed. When the switch lever is turned, the resistance caused by the vacuum generation must be clearly noticeable.
| HS Code: | 76169990 |
|---|---|
| Lifting capacity: | 30 kg |
| Suction disc diameter: | 55 mm |
| Materials: | Aluminium |
| Mounting options: | 2 x M5 schroefdraad |
| Colour: | RVS-look |
| Suction disc material: | Rubber (NBR) |
| GS certified: | Nee |
| Surface geometry: | Vlak |
| Vacuum safety indicator: | Nee |
| Number of suction discs: | 1 |
| Drive type: | Hevel |
| Thread: | 2x M5 |
| Model: | Met ontgrendelingsknoppen |
